Interactive Chart Shows Start point and End Point Using MouseDown and MouseUp Event in Vba

Hi Friends !
Today I will discussed how to select specified location inside a chart using Vba I am facing this problem from 2-3 days but now I got exact solution to Operate such type of Problem. To explain this scenario I took some data that by which I could create a chart and so I generate a  Sheet which contains some data

Now, I select data containing columns and press F11 and then it automatically generate a chart sheet like this

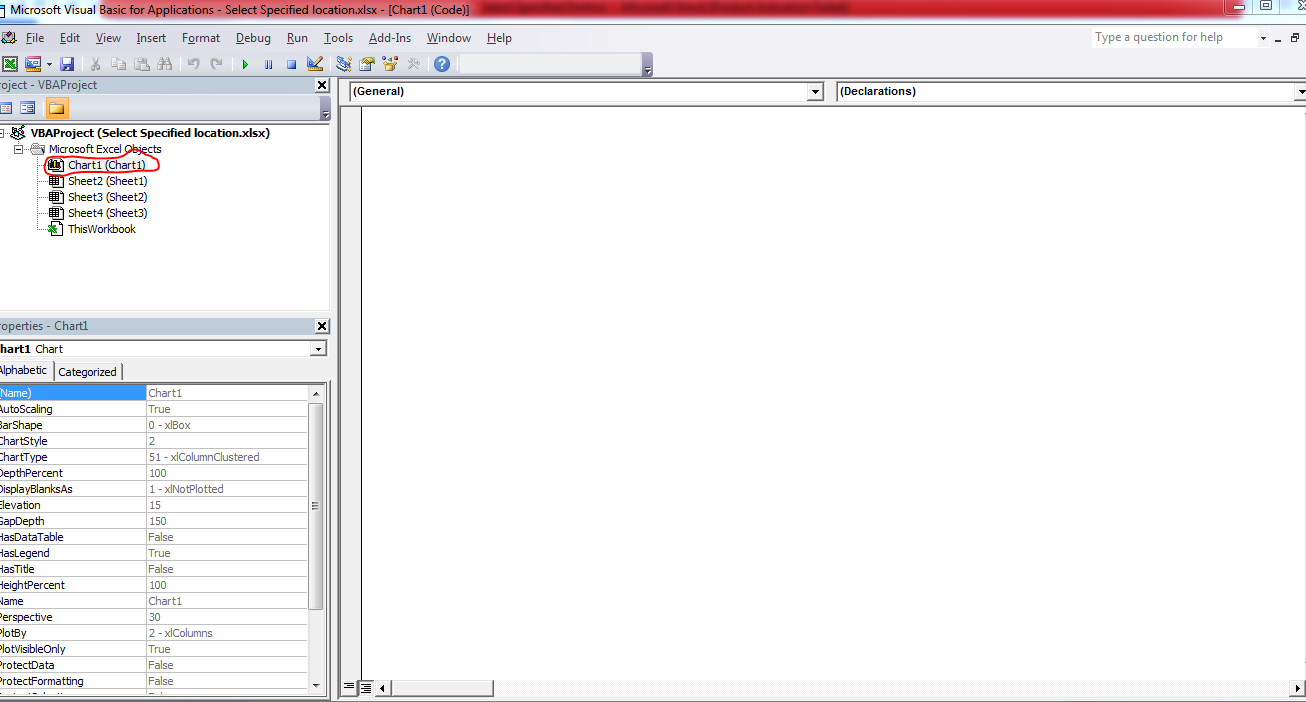

Now I will go to developer tab and click on chart as circled portion shown below  inside image and then a window will be opened

Inside that window paste the given code like this


Code
Dim startX As String
Dim startY As Double
Dim endX As String
Dim endY As Double
Private Sub Chart_MouseDown(ByVal Button As Long, ByVal Shift As Long, _
        ByVal x As Long, ByVal y As Long)

    Dim ElementID As Long, Arg1 As Long, Arg2 As Long
    Dim myX As Variant, myY As Double

    With ActiveChart
        ' Pass x & y, return ElementID and Args
        .GetChartElement x, y, ElementID, Arg1, Arg2
        ' Did we click over a point or data label?
        If ElementID = xlSeries Or ElementID = xlDataLabel Then
            If Arg2 > 0 Then
                ' Extract x value from array of x values
                myX = WorksheetFunction.Index _
                    (.SeriesCollection(Arg1).XValues, Arg2)
                ' Extract y value from array of y values
                myY = WorksheetFunction.Index _
                    (.SeriesCollection(Arg1).Values, Arg2)
                    startX = CDate(myX)
                    startY = myY
            End If
        End If
    End With
End Sub

Private Sub Chart_MouseUp(ByVal Button As Long, ByVal Shift As Long, _
        ByVal x As Long, ByVal y As Long)
    Dim ElementID As Long, Arg1 As Long, Arg2 As Long
    Dim myX As Variant, myY As Double
  With ActiveChart
        ' Pass x & y, return ElementID and Args
        .GetChartElement x, y, ElementID, Arg1, Arg2
        ' Did we click over a point or data label?
        If ElementID = xlSeries Or ElementID = xlDataLabel Then
            If Arg2 > 0 Then
                ' Extract x value from array of x values
                myX = WorksheetFunction.Index _
                    (.SeriesCollection(Arg1).XValues, Arg2)
                ' Extract y value from array of y values
                myY = WorksheetFunction.Index _
                    (.SeriesCollection(Arg1).Values, Arg2)
                    endX = CDate(myX)
                    endY = myY
                ' Display message box with point information
                     MsgBox "X = " & startX & vbCrLf _
                    & "Y = " & startY & vbCrLf _
                    & "X = " & endX & vbCrLf _
                    & "Y = " & endY

            End If
        End If
    End With
End Sub

Explanation

Inside this scenario I am using two events called MouseDown event and MouseUp event MouseDown event means left click on mouse and hold the mouse i.e Don't release it and MouseUp event shows to release mouse and after performing this Operation we will select start and end point of our selected area.
